ARCHAEOLOGY OF THE
CENTRAL MINNEAPOLIS RIVERFRONT

PART 2: ARCHAEOLOGICAL EXPLORATIONS AND INTERPRETIVE POTENTIALS

Image Archive:		(big thumbnails) (medium) (small)
Back to the Paper

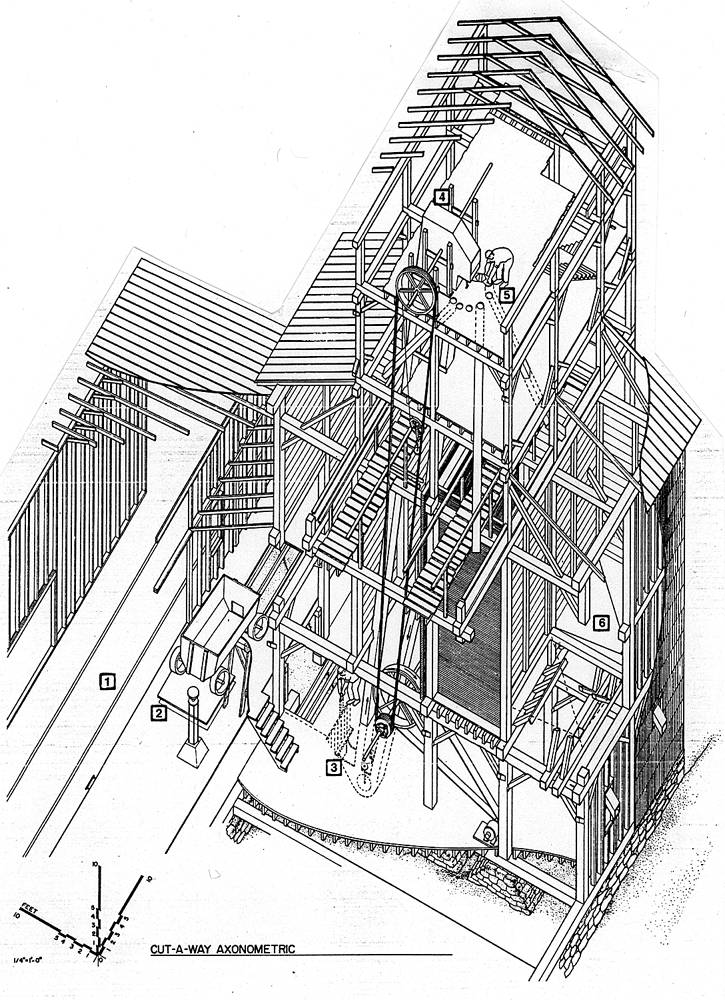

Figure 13: Cutaway view of a typical elevator of the late nineteenth century. Grain is brought in by rail (1) and weighed (2), then dumped into a hopper (3). A conveyor belt with cups then transports the grain to the head (4) at the top of the elevator where it is directed by a movable spout (5) to individual bins (6). The bins are funnel shaped at the bottom allowing downloading by gravity.
